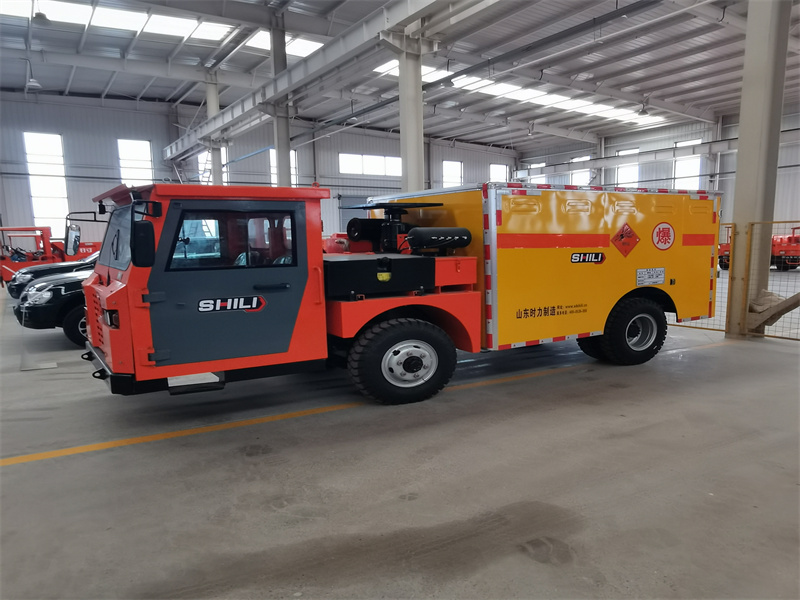

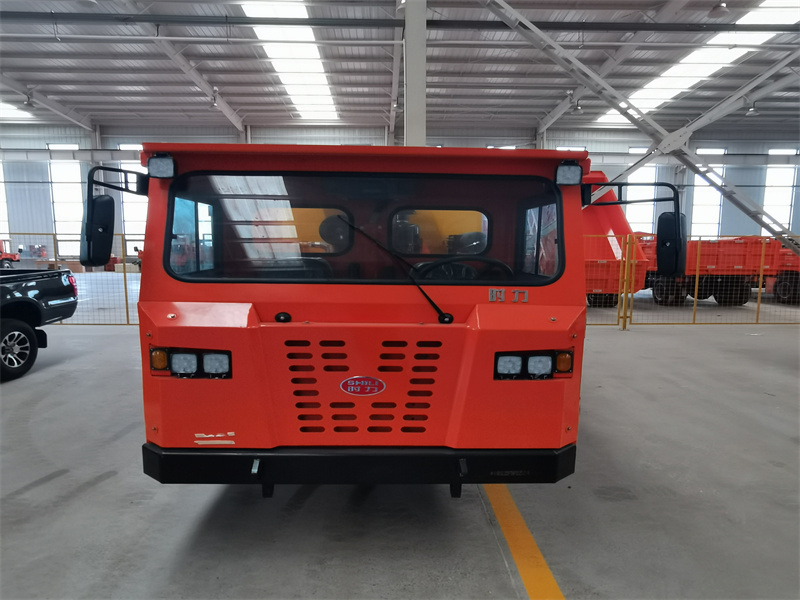

Model	ET3
Fuel Type	Diesel

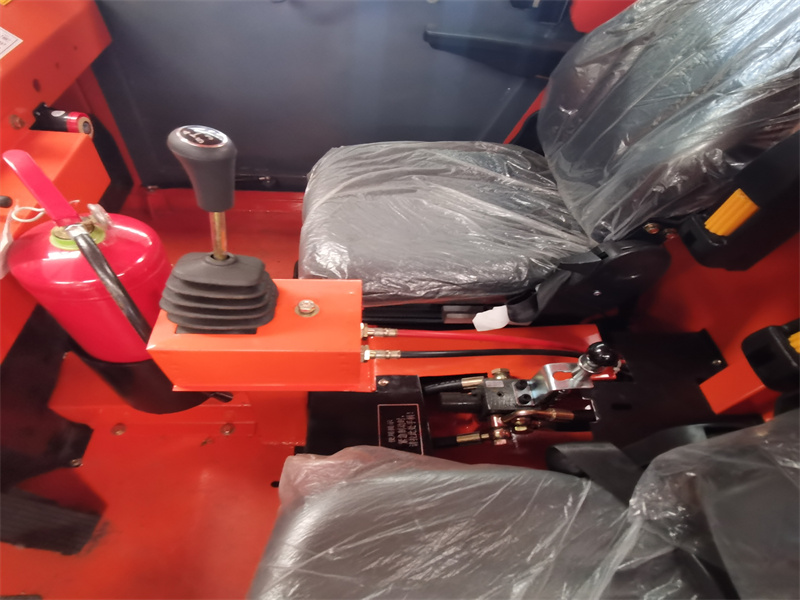

Driving Mode	Side driving, double-body mining cab
Rated Load Capacity	3000 kg
Diesel Engine Model	Yunnei 4102
Power  (KW)	88 kW(120 hp)
Transmission	1454WD
Front Axle	SWT2059
Rear Axle	S195
Leaf Spring	SLW-1
Climbing Ability (Heavy Load)	≥149 climbing ability (heavy load)
Minimum  Turning  Radius(mm)	Inner edge turning radius: 8300 mm

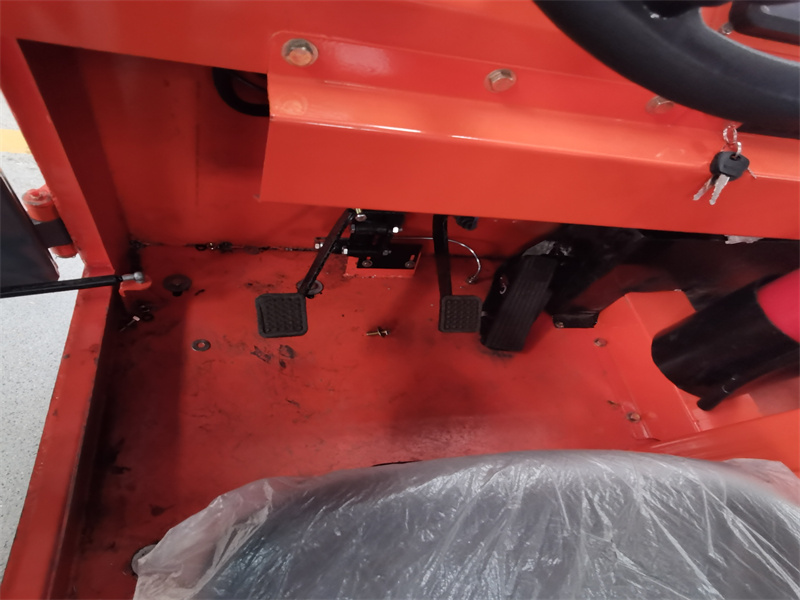

Braking System	Fully enclosed multi-disc spring brake system
Steering	Hydraulic steering
Overall  Dimensions(mm)	Overall dimensions: Length 5700 mm x Width 1800 mm x Height 2150 mm

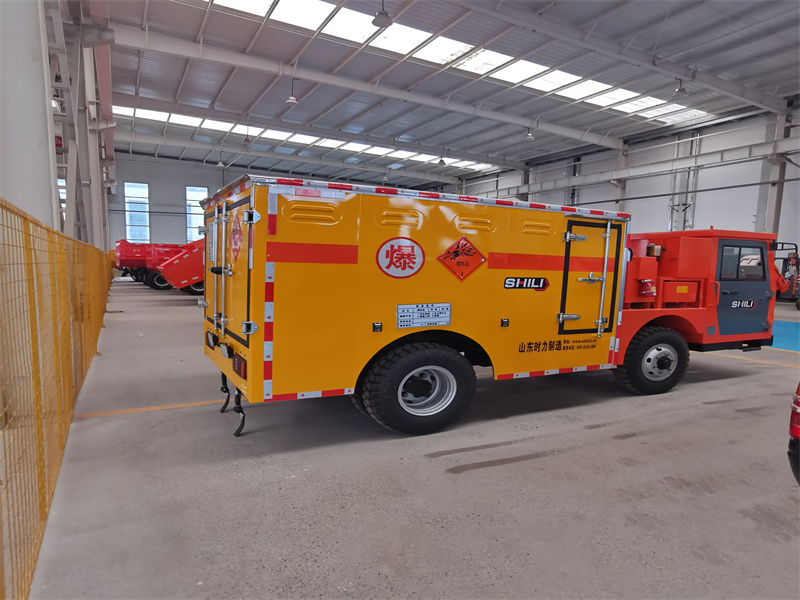

Body  Dimensions  (mm)	Box dimensions: Length 3000 mm x Width 1800 mm x Height 1700 mm
Wheelbase   (mm)	Wheelbase:  1745  mm
Axle Distance (mm)	Axle distance: 2500 mm
Tires	Front tires: 825-16 steel wire
	Rear tires: 825-16 steel wire
Total Weight (Kg	Total weight:4700+130 kg

1. Does the vehicle meet safety standards? Yes, our mining dump trucks meet international safety standards and have undergone a number of rigorous safety tests and certifications. 2. Can I customize the configuration? Yes, we can customize the configuration according to customer needs to meet the needs of different work scenarios. 3. Which materials are used in body building? We use high-strength wear-resistant materials to build our bodies, ensuring good durability in harsh working environments. 4. What are the areas covered by after-sales service? Our extensive after-sales service coverage allows us to support and service customers around the world.We offer a comprehensive after-sales service, including: 1. Give customers comprehensive product training and operation guidance to ensure that customers can correctly use and maintain the dump truck. 2. Provide rapid response and problem solving technical support team to ensure that customers are not troubled in the process of use. 3. Provide original spare parts and maintenance services to ensure that the vehicle can maintain good working condition at any time. 4. Regular maintenance services to extend the life of the vehicle and ensure that its performance is always maintained at its best.The overall dimensions of the vehicle are Length 5700 mm x Width 1800 mm x Height 2150 mm, and the dimensions of the cargo box are Length 3000 mm x Width 1800 mm x Height 1700 mm. The wheelbase is 1745 millimeters, and the axle distance is 2500 millimeters. The front tires are 825-16 steel wire, and the rear tires are also 825-16 steel wire.The total weight of the ET3 explosive truck is 4700 kg with an additional 130 kg of rated load capacity, allowing it to carry up to 3000 kg of cargo. This explosive truck is suitable for industrial applications such as mining sites, providing an efficient and reliable solution for transportation and handling tasks.The ET3 explosive truck has outstanding climbing ability, with a climbing angle of over 149 degrees under heavy load. It has a minimum turning radius of 8300 millimeters and is equipped with a fully enclosed multi-disc spring brake system for braking. The steering system is hydraulic, providing agile maneuverability.
